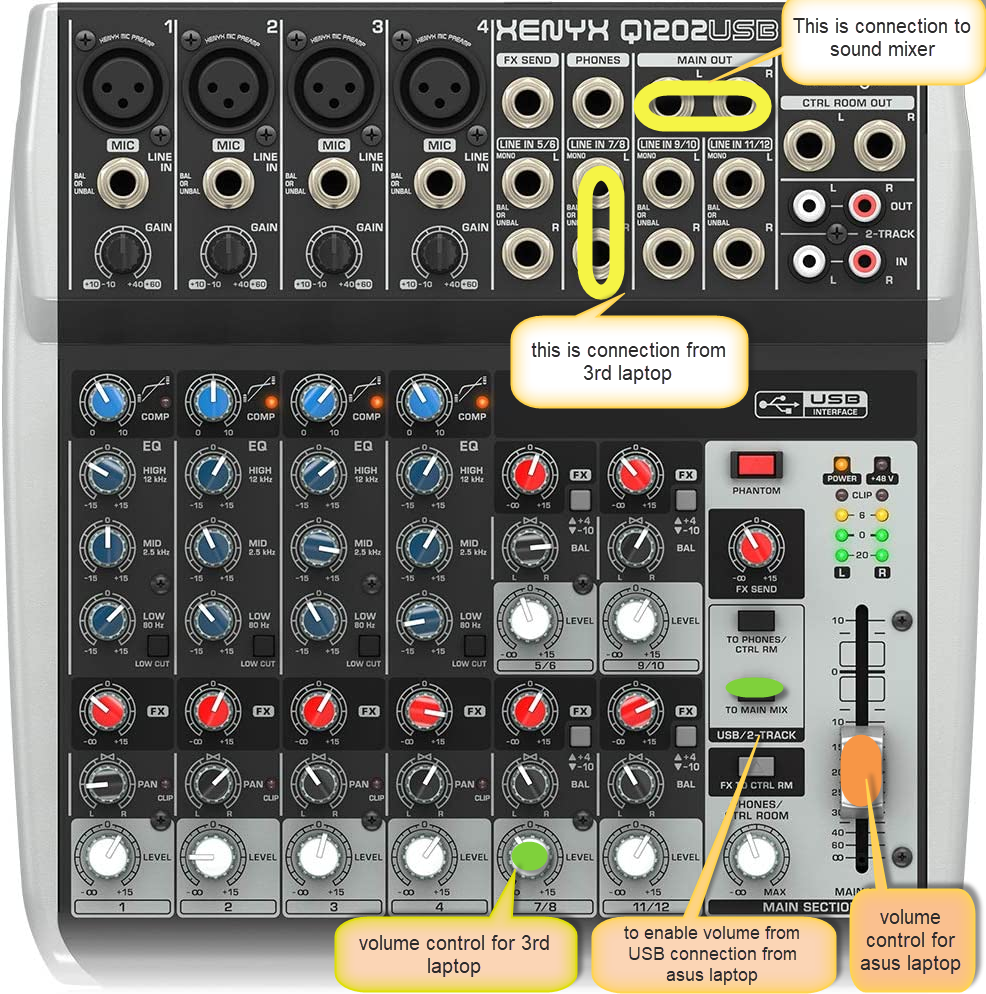

This is connection diagram for Xenyx Q1202USB with Asus Laptop, 3rd Laptop and Sound Mixer (QU-16). 3rd laptop connect to Xenyx via channel 7/8, Asus laptop connect to Xenyx via USB port, and from Xenyx to Sound mixer (QU-16) connected via MAIN OUT channel to ST1 or ST2 in QU-16

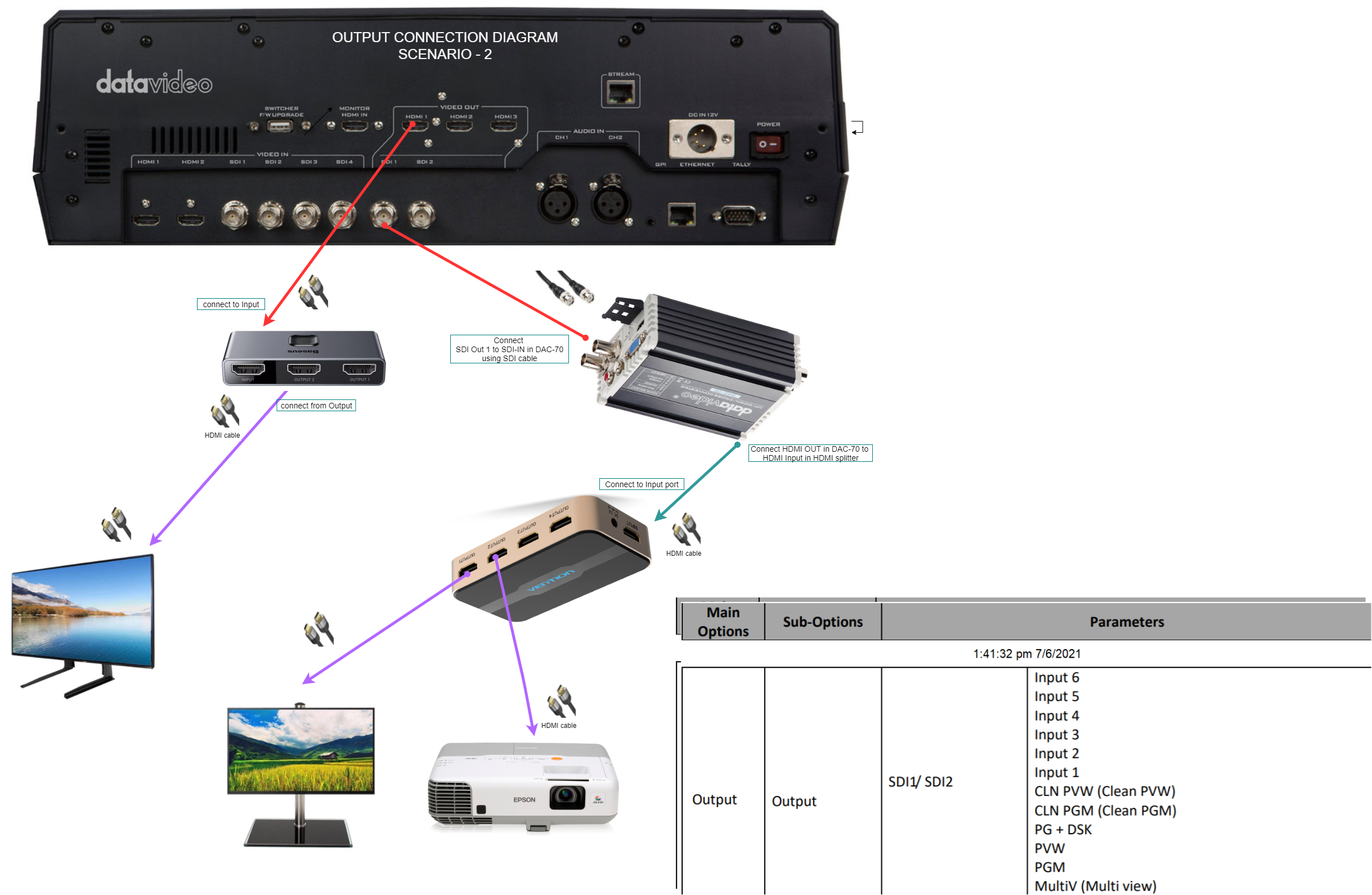

This is connection diagram which use SDI OUT port , in this case SDI OUT1 as port to connect to Projector to display video feed from Preview screen in Multiview screen. It require setup in Mixer OSD Menu to route the feed from Preview screen (PVM) to SDI OUT 1 (refer to HS-1300 manual page 39)

To see value of parameter configuration for "streaming only", "recording only" or "streaming and recording" in the HS-1300 console page, click here.

​

When the Video Mixer HS-1300 hang and require restart, during that time when you're doing recording, the recording file stored could be corrupted and cannot be playback. Therefore you need to access the HS-1300 console and choose the 'FILE REPAIR' tab to fix the particular file that corrupted. Follow the detail instructions here.

​

Tips on how to access the console of HS-1300 to setup the configuration for streaming and recording. It require the laptop/computer to setup static IP address to match to the requirement
Click on the image to view the detail tips

This is tips on Sony PXW-70 on how to do adjustment using lens ring

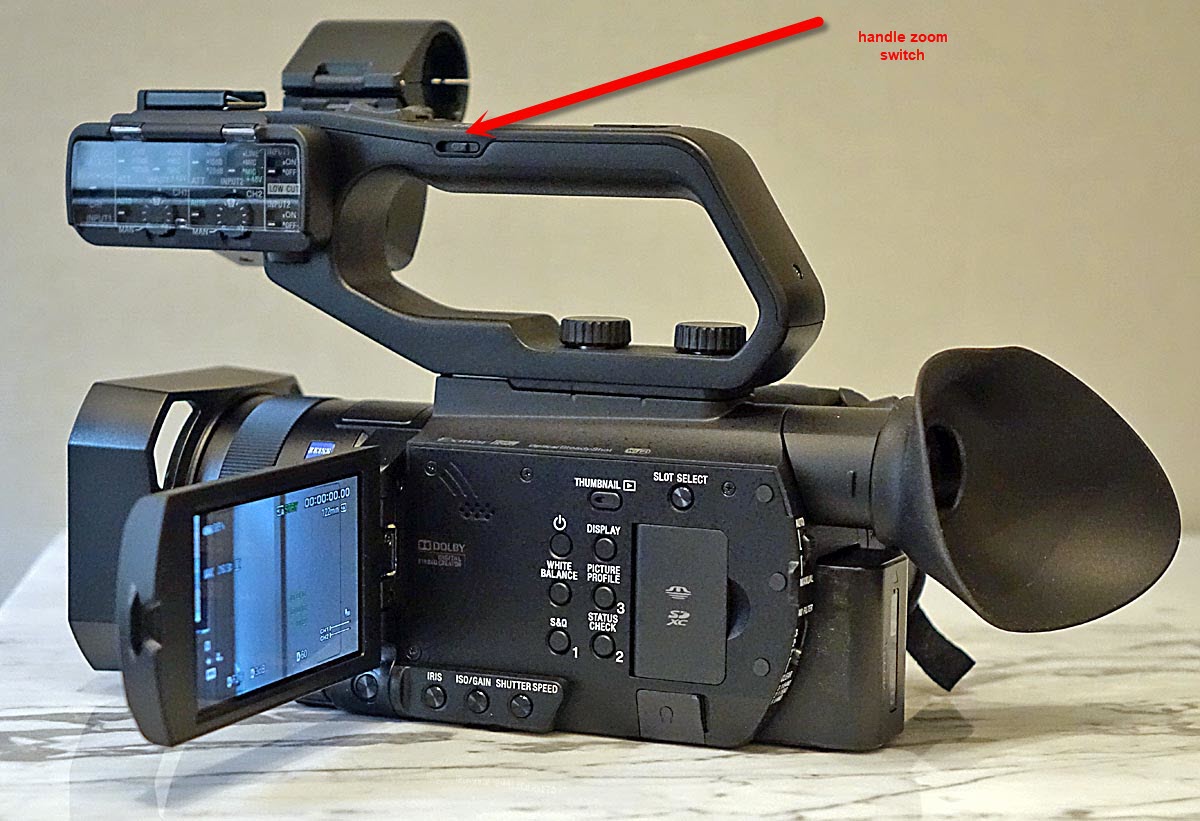

This is tips for Sony PXW-70 on how to use handle zoom switch to control the type of the zoom  (FIX or VAR)

You can use 2x Magnification when recording.

- OFF : Does not use magnification function

​

- ON : Use the magniification function

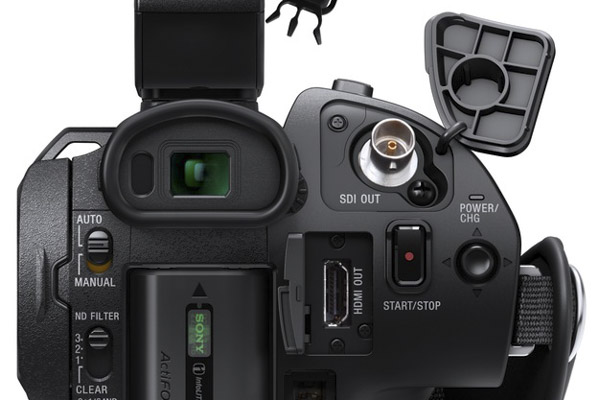

This shows type of connectors available

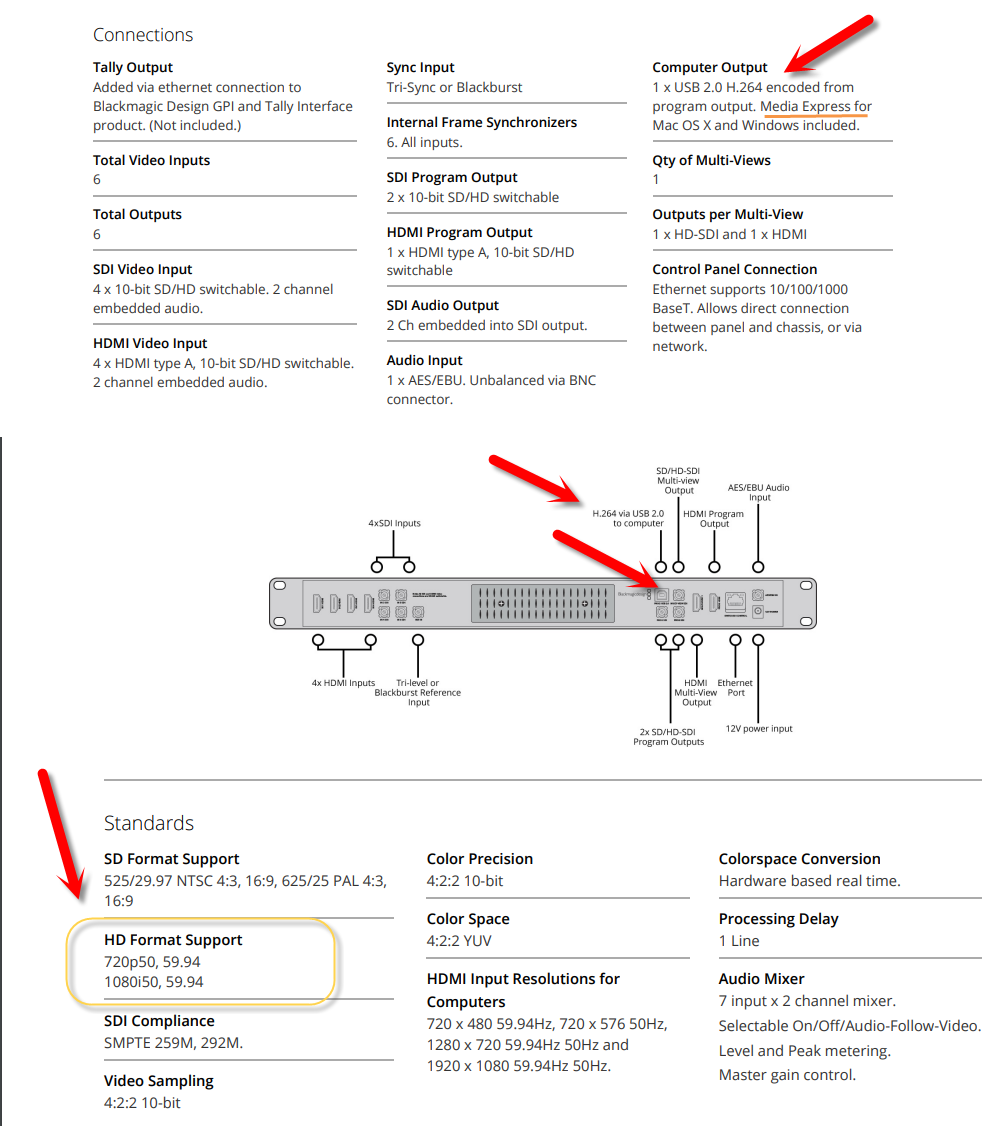

This is info on the HD resolution supported, USB 2.0 output for recording and the port information

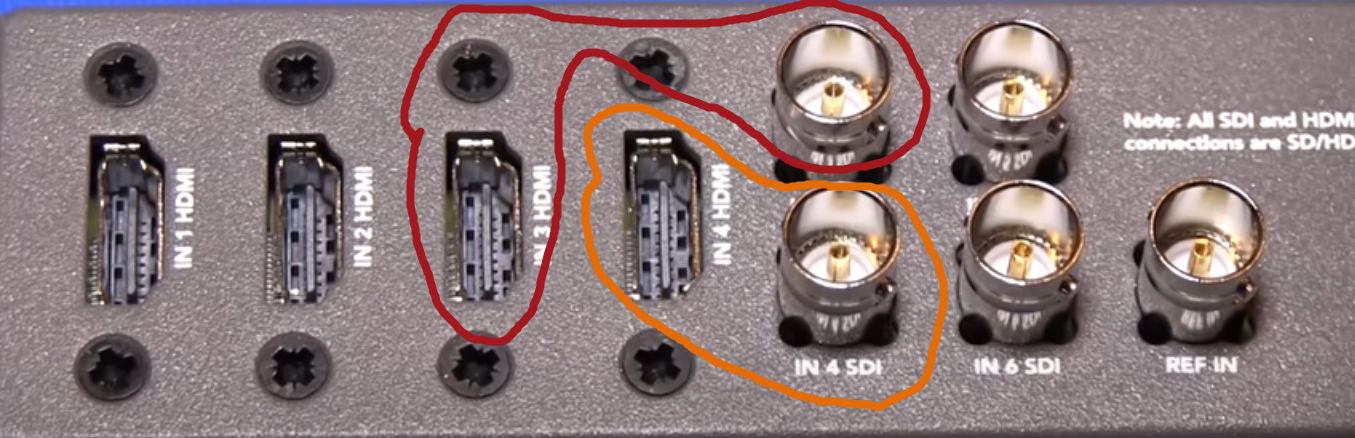

ATEM TS has total 6 input ports. But there are 4 ports that are sharing the same purpose and cannot be use simultaneously.

HDMI IN-3 share with SDI IN-3, as HDMI IN-4 share with SDI IN-4

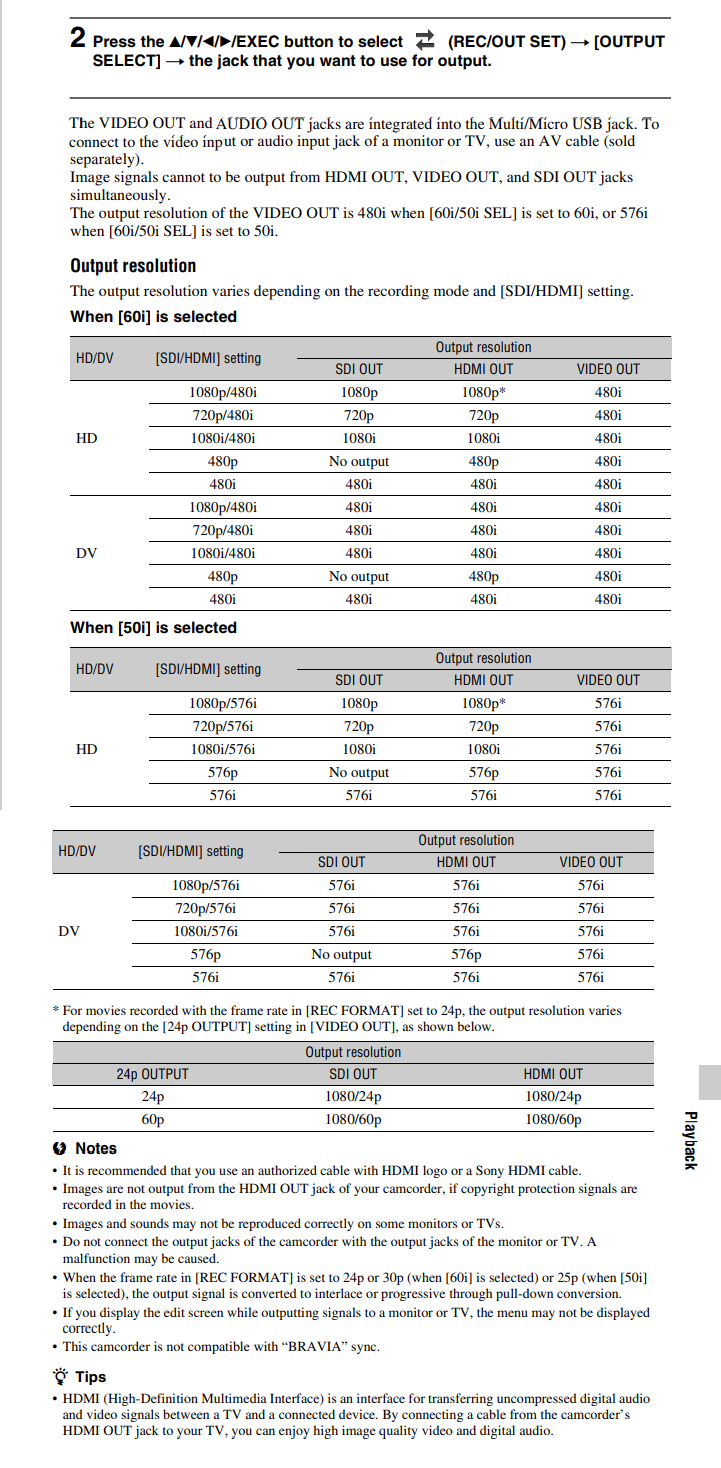

This is the supported output resolution of the camera.

​

Currently we're using 1080p/480i (60i)
